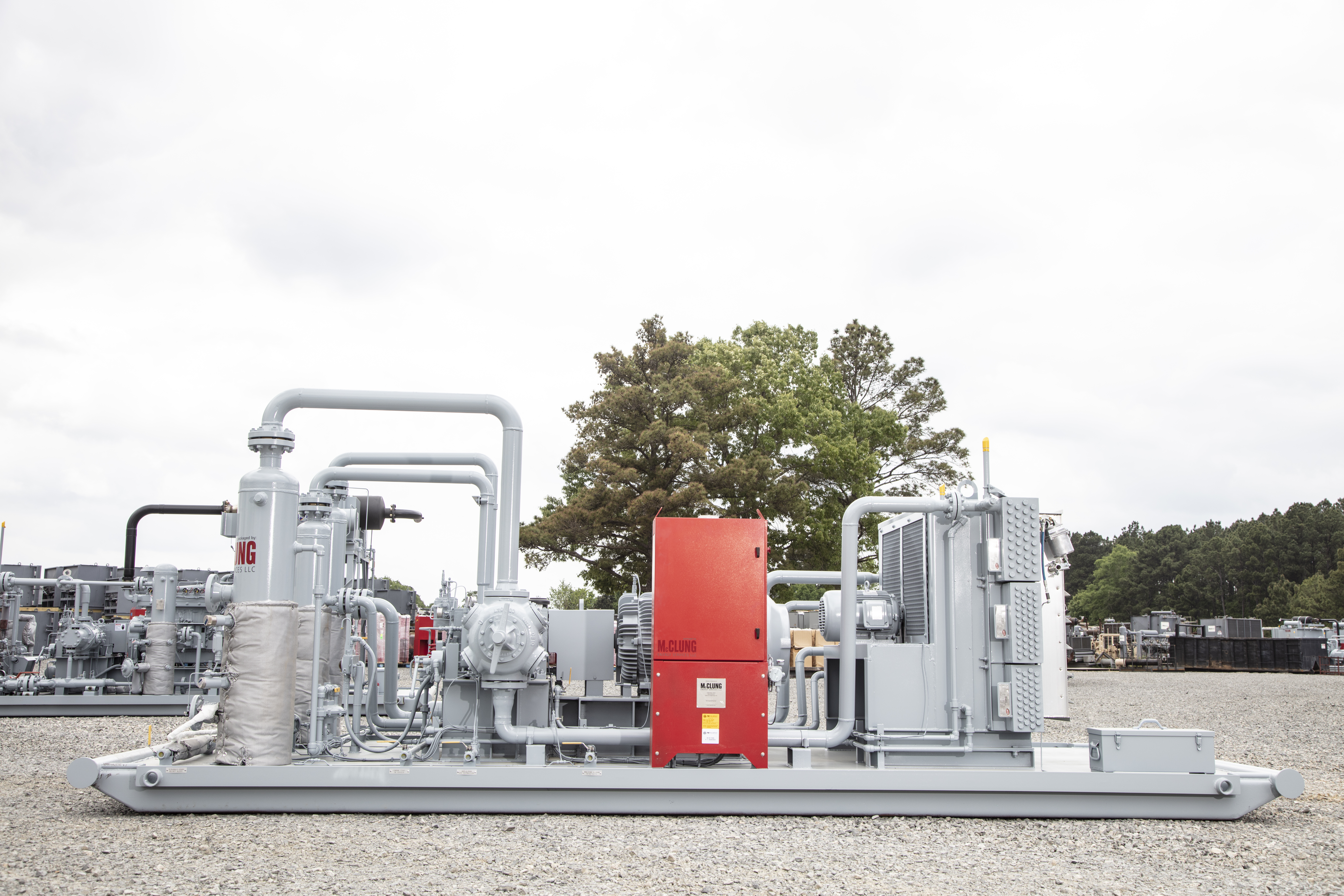

200HP-JGQ/2
Horsepower:
200HP @ 1800 rpm
Motor:
TECO-Westinghouse EP2004
Compressor:
Ariel JGQ/2
1st Stage Cylinder
7.5” JG 600 psig
2nd Stage Cylinder
5.125” P10-HE 1200 psig
3rd Stage Cylinder
3.25” P11-CE 1800 psig
Cooler:
48” Induced Draft, Vertical Discharge
Control System:
Murphy/TECO
Overall Dimensions:
23’ L X 9’ W X 10’ H
Shipping Weight:
26,000 lbs
Package Features:
- Scrubbers designed to ASME Section VIII Division 1.
- Piping designed and tested to ASME B31.3
- API 5th Edition DA2 pulsation and vibration analysis performed for smooth operation
- Murphy Centurion Panel
- Rugged four-runner I-beam skid with environmental containment
- Hot gas bypass on after-cooler section
- Inlet spool piece with basket strainer
- Suction or Discharge based speed control
- Automatic cooler louvers
- Electric Heat Tracing
- Insulated scrubbers
- Automatic makeup/recycle valve
Legacy Units Description and Performance Curves
400HP-JGA/4
Horsepower:
400HP @ 1800 rpm
Motor:
TECO-Westinghouse EPY4004
Compressor:
Ariel JGA/4
1st Stage Cylinder
(2) 7.5” JG 600 psig
2nd Stage Cylinder
5.125” JG 865 psig
3rd Stage Cylinder
3.375” JG 1640 psig
Cooler:
72” Vertical Forced Draft
Control System:
Murphy/TECO
Overall Dimensions:
27’ L X 11’ W X 11’ H
Shipping Weight:
47,500 lbs
Package Features:
- Scrubbers designed to ASME Section VIII Division 1.
- Piping designed and tested to ASME B31.3
- API 5th Edition DA3 pulsation and vibration analysis performed for smooth operation
- Murphy Centurion Panel
- Rugged four-runner I-beam skid with environmental containment
- Hot gas bypass on after-cooler section
- Inlet spool piece with basket strainer
- Suction or Discharge based speed control
- Automatic cooler louvers
- Electric Heat Tracing
- Insulated scrubbers
- Automatic makeup/recycle valve
Legacy Units Description and Performance Curves
700HP-JGJ/4
Horsepower:
700HP @ 1800 rpm
Motor:
TECO-Westinghouse EY7004
Compressor:
Ariel JGJ/4
1st Stage Cylinder
(2) 9.75” RJ 635 psig
2nd Stage Cylinder
6.375” RJ 1270 psig
3rd Stage Cylinder
3.875” RJ 2200 psig
Cooler:
72” Horizontal Forced Draft
Control System:
Murphy/TECO
Overall Dimensions:
34’ L X 13’ W X 11’ H
Shipping Weight:
91,100 lbs
Package Features:
- Scrubbers designed to ASME Section VIII Division 1.
- Piping designed and tested to ASME B31.3
- API 5th Edition DA3 pulsation and vibration analysis performed for smooth operation
- Murphy Centurion Panel
- Rugged four-runner I-beam skid with environmental containment
- Hot gas bypass on after-cooler section
- Inlet spool piece with basket strainer
- Suction or Discharge based speed control
- Automatic cooler louvers
- Electric Heat Tracing
- Insulated scrubbers
- Automatic makeup/recycle valve
Legacy Units Description and Performance Curves
3306TA-JGQ/2
Horsepower:
215HP @ 1800 rpm
Engine:
Caterpillar 3306BTA
Compressor:
Ariel JGQ/2
1st Stage Cylinder
7.5” JG 600 psig
2nd Stage Cylinder
5.125” P10-HE 1200 psig
3rd Stage Cylinder
3.25” P11-CE 1800 psig
Cooler:
72” Induced Draft, Vertical Discharge
Control System:
Murphy/EICS
Overall Dimensions:
23’ L X 9.5’ W X 12’ H
Shipping Weight:
41,000 lbs
Package Features:
- Scrubbers designed to ASME Section VIII Division 1.
- Piping designed and tested to ASME B31.3
- API 5th Edition DA2 pulsation and vibration analysis performed for smooth operation
- Murphy Centurion Panel with EICS Emissions Control
- Rugged structural steel skid with environmental containment
- Hot gas bypass on after-cooler section
- Inlet spool piece with basket strainer
- Suction or Discharge based speed control
- Automatic cooler louvers
- Engine Gylcol Heat Tracing
- Insulated scrubbers
- Coalescing type fuel gas filter for maximum engine protection
- Automatic makeup/recycle valve
Legacy Units Description and Performance Curves
CG-137-JGA/4
Horsepower:
400 HP @ 1800 rpm
Engine:
Caterpillar CG137-8
Compressor:
Ariel JGA/4
1st Stage Cylinder
7.5” JG 600 psig
2nd Stage Cylinder
5.125” JG 865 psig
3rd Stage Cylinder
3.375” JG 1640 psig
Cooler:
93” Forced Draft, Vertical Discharge
Control System:
Murphy/EICS
Overall Dimensions:
27’ L X 14’ W X 12’ H
Shipping Weight:
51,000 lbs
Package Features:
- Scrubbers designed to ASME Section VIII Division 1.
- Piping designed and tested to ASME B31.3
- API 5th Edition DA2 pulsation and vibration analysis performed for smooth operation
- Murphy Centurion Panel with CAT ADEM Emissions Control
- Rugged structural steel skid with environmental containment
- Hot gas bypass on after-cooler section
- Inlet spool piece with basket strainer
- Suction or Discharge based speed control
- Automatic cooler louvers
- Engine Gylcol Heat Tracing
- Insulated scrubbers
- Coalescing type fuel gas filter for maximum engine protection
- Automatic makeup/recycle valve
Legacy Units Description and Performance Curves
KTA-19-JGA/4
Horsepower:
420 HP @ 1800 rpm
Engine:
Cummins KTA19CG
Compressor:
Ariel JGA/4
1st Stage Cylinder
(2) 7.5” JG 600 psig
2nd Stage Cylinder
5.125” JG 865 psig
3rd Stage Cylinder
3.375” JG 1640 psig
Cooler:
93” Induced Draft, Vertical Discharge
Control System:
Murphy/EICS
Overall Dimensions:
27’ L X 13’ W X 12’ H
Shipping Weight:
52,600 lbs
Package Features:
- Scrubbers designed to ASME Section VIII Division 1.
- Piping designed and tested to ASME B31.3
- API 5th Edition DA2 pulsation and vibration analysis performed for smooth operation
- Murphy Centurion Panel with EICS Emissions Control
- Rugged structural steel skid with environmental containment
- Hot gas bypass on after-cooler section
- Inlet spool piece with basket strainer
- Suction or Discharge based speed control
- Automatic cooler louvers
- Engine Gylcol Heat Tracing
- Insulated scrubbers
- Coalescing type fuel gas filter for maximum engine protection
- Automatic makeup/recycle valve
.jpg)
Legacy Units Description and Performance Curves
GTA-38-JGJ/4
Horsepower:
760 HP @ 1800 rpm
Engine:
Cummins GTA38CGE
Compressor:
Ariel JGJ/4
1st Stage Cylinder
(2) 9.75” RJ 635 psig
2nd Stage Cylinder
6.375” RJ 1270 psig
3rd Stage Cylinder
3.875” RJ 2200 psig
Cooler:
81” Forced Draft (2 fan)
Control System:
Murphy/EICS
Overall Dimensions:
40’ L X 14’ W X 19.5’ H
Shipping Weight:
90,100 lbs
Package Features:
- Scrubbers designed to ASME Section VIII Division 1.
- Piping designed and tested to ASME B31.3
- API 5th Edition DA2 pulsation and vibration analysis performed for smooth operation
- Murphy Centurion Panel with EICS Emissions Control
- Rugged structural steel skid with environmental containment
- Hot gas bypass on after-cooler section
- Inlet spool piece with basket strainer
- Suction or Discharge based speed control
- Automatic cooler louvers
- Engine Gylcol Heat Tracing
- Insulated scrubbers
- Coalescing type fuel gas filter for maximum engine protection
- Connections for future automatic makeup/recycle valve
.jpg)
Legacy Units Description and Performance Curves
3306NA-JGQ/2
Horsepower:
145HP @ 1800 rpm
Engine:
Caterpillar 3306BNA
Compressor:
Ariel JGQ/2
1st Stage Cylinder
7.125” JG 600 psig
2nd Stage Cylinder
5.125” P10-HE 1200 psig
3rd Stage Cylinder
3.25” P11-CE 1800 psig
Cooler:
60” Induced Draft, Vertical Discharge
Control System:
Murphy/EICS
Overall Dimensions:
21’ L X 9.2’ W X 10’ H
Shipping Weight:
35,500 lbs
Package Features:
- Scrubbers designed to ASME Section VIII Division 1.
- Piping designed and tested to ASME B31.3
- API 5th Edition DA2 pulsation and vibration analysis performed for smooth operation
- Murphy Centurion Panel with EICS Emissions Control
- Rugged structural steel skid with environmental containment
- Hot gas bypass on after-cooler section
- Inlet spool piece with basket strainer
- Suction or Discharge based speed control
- Automatic cooler louvers
- Engine Gylcol Heat Tracing
- Insulated scrubbers
- Coalescing type fuel gas filter for maximum engine protection
- Automatic makeup/recycle valve
Legacy Units Description and Performance Curves
3304NA-JGP/2
Horsepower:
95HP @ 1800 rpm
Engine:
Caterpillar 3304NA
Compressor:
Ariel JGP/2
1st Stage Cylinder
6.125” JG 635 psig
2nd Stage Cylinder
4.375” P-HE 1270 psig
3rd Stage Cylinder
2.75” P-CE 1500 psig
Cooler:
48” Induced Draft, Vertical Discharge
Control System:
Murphy/EICS
Overall Dimensions:
21’ L X 9.2’ W X 10’ H
Shipping Weight:
34,000 lbs
Package Features:
- Scrubbers designed to ASME Section VIII Division 1.
- Piping designed and tested to ASME B31.3
- Murphy Centurion Panel with EICS Emissions Control
- Rugged structural steel skid with environmental containment
- Hot gas bypass on after-cooler section
- Inlet spool piece with basket strainer
- Suction or Discharge based speed control
- Automatic cooler louvers
- Engine Gylcol Heat Tracing
- Insulated scrubbers
- Coalescing type fuel gas filter for maximum engine protection
- Automatic makeup/recycle valve
Legacy Units Description and Performance Curves
Electric Compressors
Horsepower:
Horsepower information
We’re leading the way in helping companies who want superior electric drive compression solutions. Access to electrical infrastructure is spreading to more basins, making the switch to electric compressors easier.
We can modify any of our standard electrical well-pad compression packages to meet your particular specifications. And we provide user training to get your teams comfortable using well-pad compression from a new power supply.
Gas Compressors
Horsepower:
Horsepower information
Small and midsize gas-driven well-pad compression in the 200-800 HP range remains a staple for agile companies.
They’re ideal for those who want to optimize oil recovery and gas gathering. And they’re where we began focusing on standard packages for the industry—and where we’re still leaders with our quality equipment. Our gas well-pad compression packages are operating in all major basins in the US, including the Permian and Bakken basins.
Custom Equipment
Horsepower:
Horsepower information
Title for this information:
- Sed ut perspiciatis unde omnis iste natus error sit voluptatem accusantium doloremque laudantium.
- Totam rem aperiam, eaque ipsa quae ab illo inventore veritatis et quasi architecto beatae vitae dicta sunt explicabo.
- Nemo enim ipsam voluptatem quia voluptas sit aspernatur aut odit aut fugit, sed quia consequuntur magni dolores eos qui ratione voluptatem sequi nesciunt.
Title for this information:
- Sed ut perspiciatis unde omnis iste natus error sit voluptatem accusantium doloremque laudantium.
- Totam rem aperiam, eaque ipsa quae ab illo inventore veritatis et quasi architecto beatae vitae dicta sunt explicabo.
- Nemo enim ipsam voluptatem quia voluptas sit aspernatur aut odit aut fugit, sed quia consequuntur magni dolores eos qui ratione voluptatem sequi nesciunt.
- Sed ut perspiciatis unde omnis iste natus error sit voluptatem accusantium doloremque laudantium.
- Totam rem aperiam, eaque ipsa quae ab illo inventore veritatis et quasi architecto beatae vitae dicta sunt explicabo.
- Nemo enim ipsam voluptatem quia voluptas sit aspernatur aut odit aut fugit, sed quia consequuntur magni dolores eos qui ratione voluptatem sequi nesciunt.
Title for this information:
- Sed ut perspiciatis unde omnis iste natus error sit voluptatem accusantium doloremque laudantium.
- Totam rem aperiam, eaque ipsa quae ab illo inventore veritatis et quasi architecto beatae vitae dicta sunt explicabo.
- Nemo enim ipsam voluptatem quia voluptas sit aspernatur aut odit aut fugit, sed quia consequuntur magni dolores eos qui ratione voluptatem sequi nesciunt.
- Sed ut perspiciatis unde omnis iste natus error sit voluptatem accusantium doloremque laudantium.
- Totam rem aperiam, eaque ipsa quae ab illo inventore veritatis et quasi architecto beatae vitae dicta sunt explicabo.
- Nemo enim ipsam voluptatem quia voluptas sit aspernatur aut odit aut fugit, sed quia consequuntur magni dolores eos qui ratione voluptatem sequi nesciunt.
HPGL
Horsepower:
Horsepower information
Title for this information:
- Sed ut perspiciatis unde omnis iste natus error sit voluptatem accusantium doloremque laudantium.
- Totam rem aperiam, eaque ipsa quae ab illo inventore veritatis et quasi architecto beatae vitae dicta sunt explicabo.
- Nemo enim ipsam voluptatem quia voluptas sit aspernatur aut odit aut fugit, sed quia consequuntur magni dolores eos qui ratione voluptatem sequi nesciunt.
Title for this information:
- Sed ut perspiciatis unde omnis iste natus error sit voluptatem accusantium doloremque laudantium.
- Totam rem aperiam, eaque ipsa quae ab illo inventore veritatis et quasi architecto beatae vitae dicta sunt explicabo.
- Nemo enim ipsam voluptatem quia voluptas sit aspernatur aut odit aut fugit, sed quia consequuntur magni dolores eos qui ratione voluptatem sequi nesciunt.
- Sed ut perspiciatis unde omnis iste natus error sit voluptatem accusantium doloremque laudantium.
- Totam rem aperiam, eaque ipsa quae ab illo inventore veritatis et quasi architecto beatae vitae dicta sunt explicabo.
- Nemo enim ipsam voluptatem quia voluptas sit aspernatur aut odit aut fugit, sed quia consequuntur magni dolores eos qui ratione voluptatem sequi nesciunt.
Title for this information:
- Sed ut perspiciatis unde omnis iste natus error sit voluptatem accusantium doloremque laudantium.
- Totam rem aperiam, eaque ipsa quae ab illo inventore veritatis et quasi architecto beatae vitae dicta sunt explicabo.
- Nemo enim ipsam voluptatem quia voluptas sit aspernatur aut odit aut fugit, sed quia consequuntur magni dolores eos qui ratione voluptatem sequi nesciunt.
- Sed ut perspiciatis unde omnis iste natus error sit voluptatem accusantium doloremque laudantium.
- Totam rem aperiam, eaque ipsa quae ab illo inventore veritatis et quasi architecto beatae vitae dicta sunt explicabo.
- Nemo enim ipsam voluptatem quia voluptas sit aspernatur aut odit aut fugit, sed quia consequuntur magni dolores eos qui ratione voluptatem sequi nesciunt.
GET A QUOTE
